Geberit Duofix 1.12m WC Toilet Frame Delta Cistern Wall Brackets WC Bend Delta21

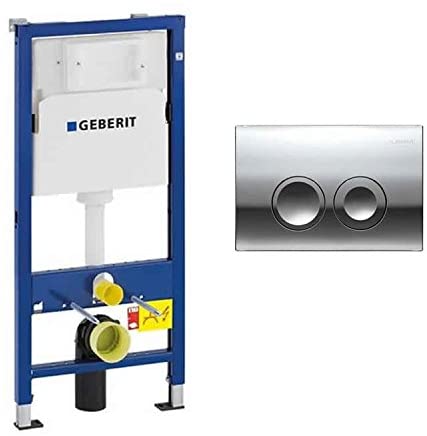

Geberit 458.118.21.1 DUOFIX WC Frame 1.12m with Cistern Delta 21 Gloss Chrome Flush Plate

The Geberit Duofix frame system allows you to design and create the bathroom of your dreams.

Hidden behind walls and tiles Geberit Duofix supports wall hung sanitaryware and includes an integral cistern.

The result is a clean and modern finish with no visible pipework. The Geberit Duofix frame is the backbone to Geberit's bathroom system.

The sturdy metal frame has been designed to support wall hung sanitaryware without the need for supporting walls.

Frames are available for toilet pans hand washbasins bidets and urinals.

The Geberit Duofix frame allows designers to create eye-catching new bathrooms from the bare minimum without expensive structural work.

Frames can simply be bolted to the floor and placed within or attached to walls. The frame system can be used in the tightest of spaces including corners allowing designers the freedom to create stunning bathrooms without compromise.

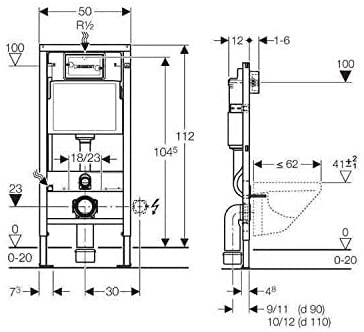

Specifications of the Geberit 458.118.21.1 DUOFIX WC Frame 1.12m with Cistern Delta 21 Gloss Chrome Flush Plate

For drywall construction
For installation in part- or room-height prewall installations
For installation in room-height installation walls
For wall-hung WCs with connection dimensions in accordance with EN 33:2011
For wall-hung WCs with projection up to 62 cm
For floor constructions 0 20 cm
Self-supporting frame, powder-coated
Frame top open
Frame with 9 mm drilling holes for fastening in wood frame construction
Frame with holes to receive Geberit Duofix wall anchors for elements with frame top open
Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
Galvanized feet
Feet adjustable 0 20 cm
Foot plates made of plastic
Foot plate depth suitable for installation in U-profiles UW 50
