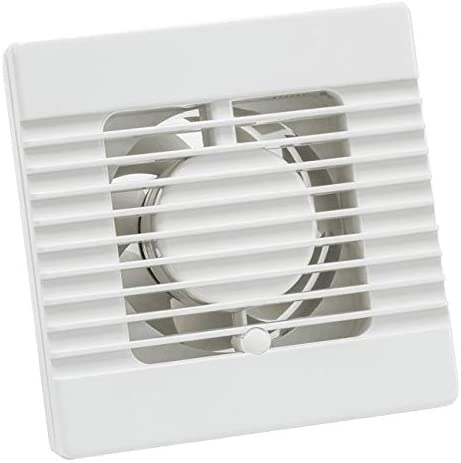

Manrose 100mm Low Voltage Bathroom Extractor 12V Fan with Timer NVF100LVT

The Manrose 100mm Low Voltage Fan with Timer are bathroom accessories which are built with performance in mind. This unit is suitable for mounting overhead within the splash area of a bath or shower, where many other conventional extractor fans are unable to be installed due to the current regulations preventing units with electrical parts getting so close. It is achieved using a SELV, 12 volt -50Hz shaded motor. This fan has a powerful and effective extraction rate of 85m3/hr to prevent mould growth and lingering odours due to excess moisture in the air. All units are Constructed using the highest quality ABS thermoplastics for a design that is dependable and robust, as well as aesthetics allowing the unit to impeccably blend in with the d̩cor of the room. In addition to this, the power is supplied to the unit using a single phase induction motor with a pre-oiled bearing to provide a unit with no upkeep required. In addition to all of these features, as the name implies, this unit uses the minimal power of only 10 watts, yet still providing a powerful performance.

Technical information:
‰ۢ Maximum pressure: 20 p.a.
‰ۢ Fan speed: 2400 r.p.m.

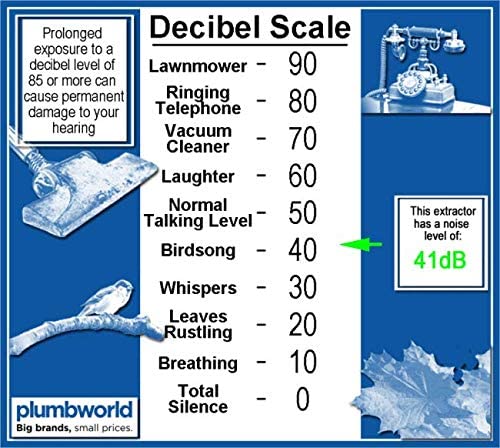

‰ۢ Sound volume: 41.0 dB (A).
‰ۢ Maximum operating temperature: 40C.
‰ۢ Maximum airflow l/s: 23 (85m3/hr)
‰ۢ Power consumption (Watts): 10.
‰ۢ SFP: 0.43.
‰ۢ Maximum duct length: 1.5m.

Dimensions:
‰ۢ Front Facia: 155mm2
‰ۢ Spigot Diameter: 98mmÌü
‰ۢ Spigot Depth: 48mm
